Litemove SE-110 110 Lux E-Bike Headlight with Handlebar Mount

Litemove SE-110 110 Lux — E-Bike Headlight and Handlebar Mount Kit

Litemove SE-110 is a high-quality front light for electric bicycles, designed for everyday urban riding, commuting, trekking and riding on poorly lit roads. This product is supplied as a complete kit with a handlebar mount, giving you the main components required for a clean and stable installation.

The SE-110 combines 110 Lux light output, precise Litemove MTi optics and low power consumption. The headlight is powered directly by a compatible e-bike electrical system and does not require a separate rechargeable battery.

110 Lux Light Output with Litemove MTi Optics

Litemove MTi optical technology is designed to direct the light efficiently onto the road ahead. Two LED light sources provide strong and controlled illumination, helping the rider identify road surfaces, obstacles and changes in riding conditions earlier.

The SE-110 is approved according to StVZO-K with approval number K1698. Its controlled beam pattern is designed to illuminate the road effectively while limiting unnecessary upward glare.

Direct Power from the E-Bike System

The Litemove SE-110 operates on 5–16 V DC and has a power consumption of only 5.6 W. It is designed to connect to a compatible lighting output provided by the electric bicycle system.

The headlight does not use its own rechargeable battery. Once correctly connected, it becomes part of the bicycle’s electrical system.

Important: a bicycle may use a 36 V or 48 V main battery, but this does not mean that the SE-110 should be connected directly to that battery. The headlight requires a suitable 5–16 V DC lighting output.

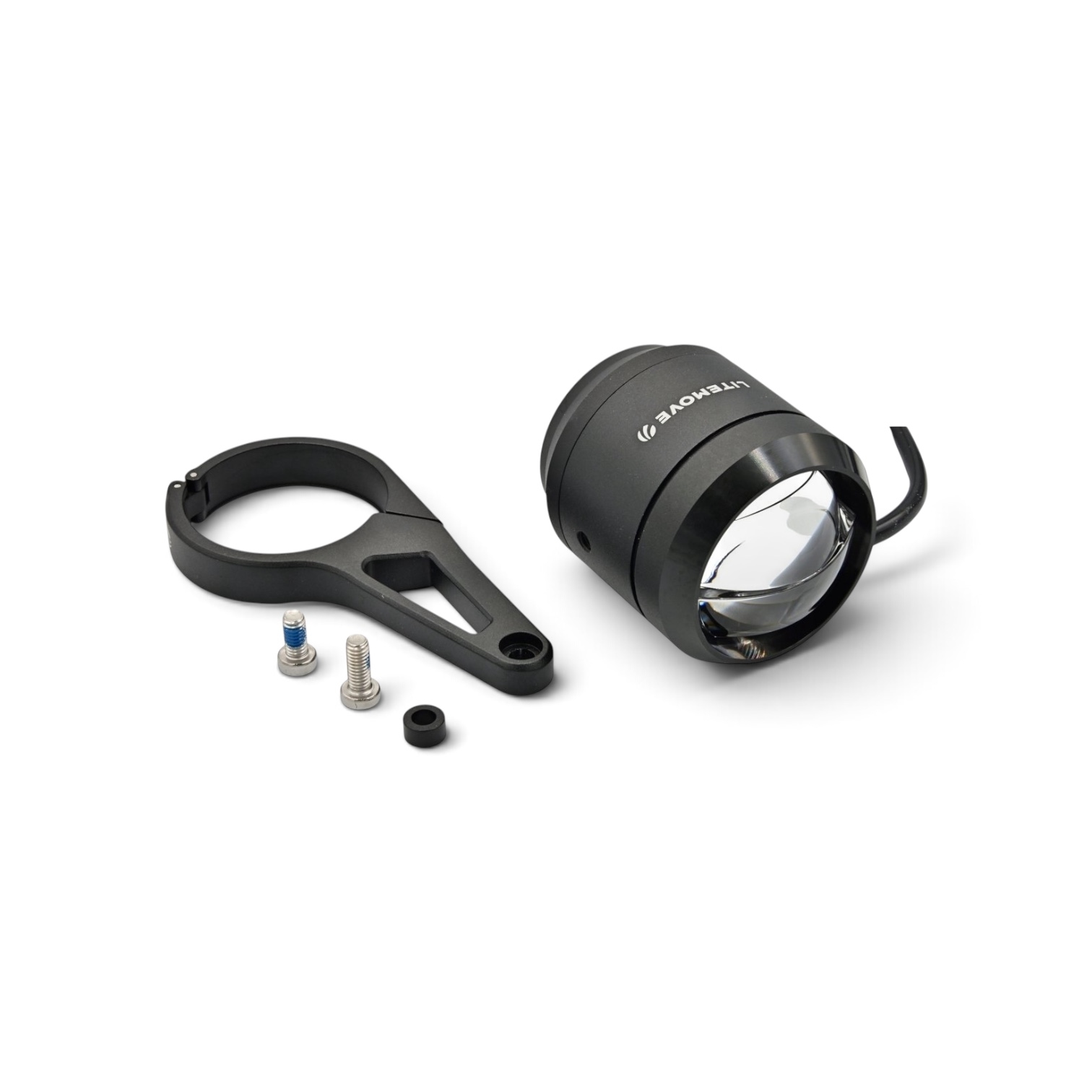

Complete Handlebar Mount Kit

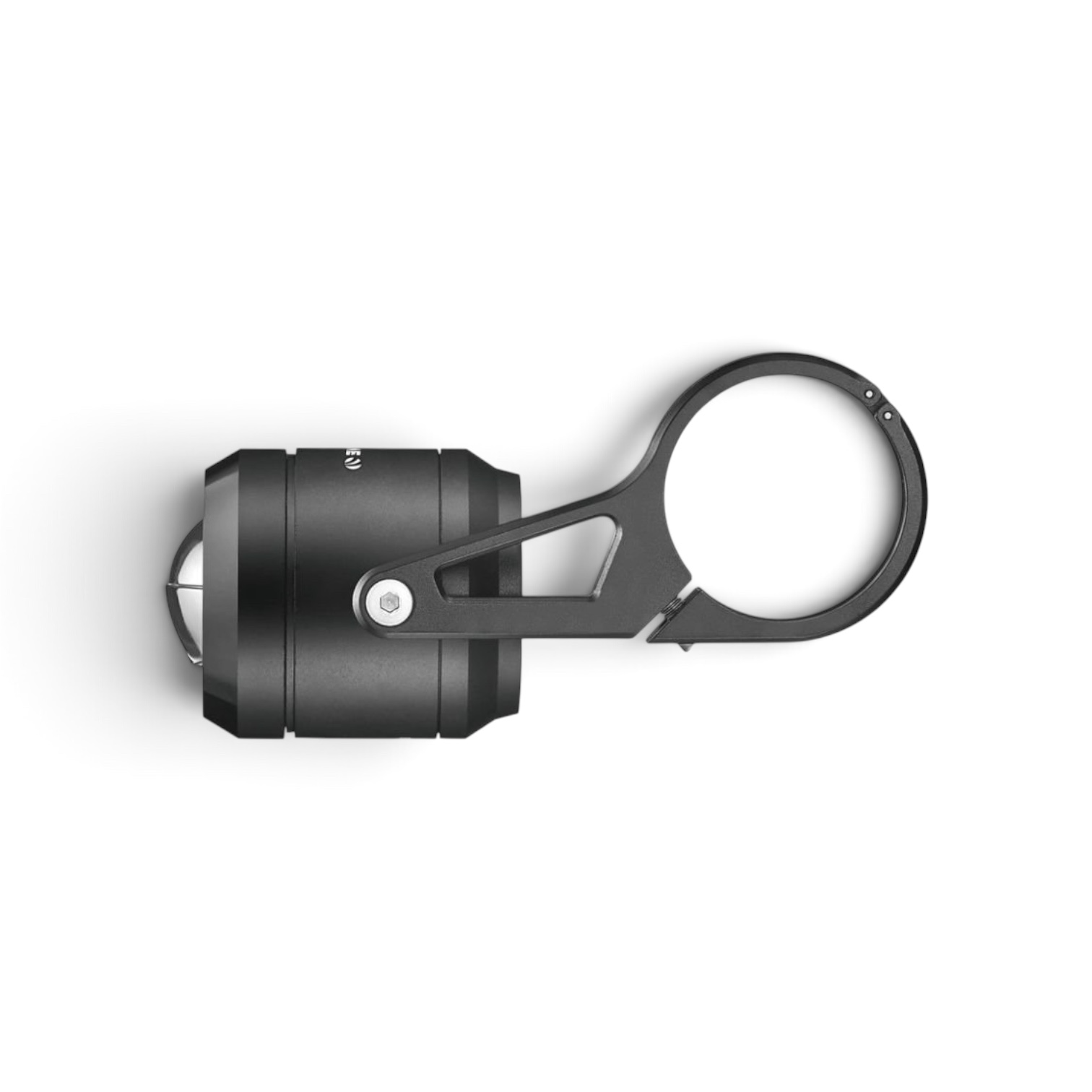

The kit includes a Litemove PHB31850 handlebar mount designed for 31.8 mm and 35 mm handlebars. This allows the headlight to be positioned securely at the front of the bicycle and the beam angle to be adjusted correctly.

Before installation, check the handlebar diameter, available space around the display and controls, and make sure the light can be positioned and aimed correctly.

Built for Everyday E-Bike Use

The IP56 protection rating provides resistance against dust and water spray under normal riding conditions. The specified operating temperature range is -25°C to +70°C, making the SE-110 suitable for year-round use.

The housing is made from aluminium and plastic. The headlight weighs approximately 83 g without the cable and measures approximately Ø43.5 x 53 mm.

Original Equipment on Econic One / EconicOne

Litemove SE-110 has been used as original front lighting on selected Econic One Adventure, Econic One Bandit and Econic One City Bandit configurations. These models are also frequently searched for using the compact spelling EconicOne.

This makes the kit a suitable replacement option for corresponding Econic One / EconicOne bicycles, provided the electrical connection and mounting configuration match the original setup.

Suitable for Other Electric Bicycles

The Litemove SE-110 is not limited to Econic One bicycles. It can also be used with other electric bicycles that provide a compatible 5–16 V DC lighting output, the correct electrical connector and a suitable mounting position.

Before ordering, check the lighting output voltage, connector type and handlebar compatibility of your e-bike system.

Technical Specifications

Frequently Asked Questions

What is included in the kit?

The kit includes the Litemove SE-110 110 Lux front headlight and the Litemove PHB31850 handlebar mount.

What handlebar diameter is the mount designed for?

The PHB31850 mount is designed for 31.8 mm and 35 mm handlebars.

Can the Litemove SE-110 be used on other electric bicycles?

Yes. The headlight can be used with other compatible e-bike systems that provide a suitable 5–16 V DC lighting output, correct connector and compatible mounting position.

Can it be connected directly to a 36 V or 48 V battery?

No. The SE-110 requires 5–16 V DC and should be connected to a suitable lighting output from the e-bike electrical system.

Is the kit suitable for Econic One Adventure, Bandit and City Bandit?

Yes. The Litemove SE-110 has been used as original front lighting on selected Econic One / EconicOne Adventure, Bandit and City Bandit configurations. Check the connector and electrical configuration before ordering.

Is the headlight weather resistant?

Yes. The SE-110 has an IP56 protection rating and is designed for normal everyday riding in varying weather conditions.
